Network Diagrams - Revision Quiz 1

Question 1 of 13

In the diagrams below which network graphs are isomorphic to each other?

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.
Previewing

Network Diagrams - Revision Quiz 1

Question 2 of 13

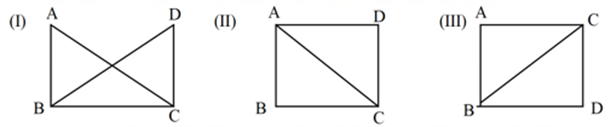

In the diagrams below which network graphs are isomorphic to each other?

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 3 of 13

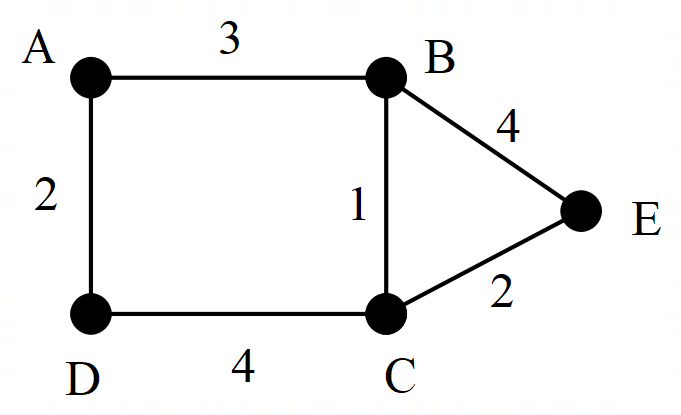

The length of the shortest path from A to E is ?

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 4 of 13

The the shortest path from A to F is ?

A

\({\rm{A}} - {\rm{B}} - {\rm{C}} - {\rm{F}}\)

B

\({\rm{A}} - {\rm{D}} - {\rm{E}} - {\rm{B}} - {\rm{F}}\)

C

\({\rm{A}} - {\rm{E}} - {\rm{B}} - {\rm{C}} - {\rm{F}}\)

D

\({\rm{A}} - {\rm{E}} - {\rm{C}} - {\rm{F}}\)

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 5 of 13

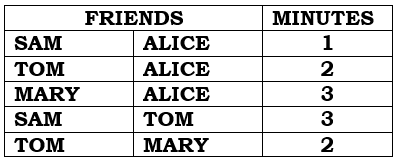

Four friends, Alice, Mary, Tom and Sam live in the same neighbourhood. The adjacent table shows the number of minutes it takes to walk between their homes.What is the shortest total time for Alice to leave home and visit Sam, Tom and Mary in that order and return home. Ignore the time spent at each home.

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 6 of 13

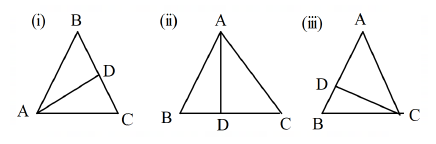

In the diagrams below which network graphs are isomorphic to each other?

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 7 of 13

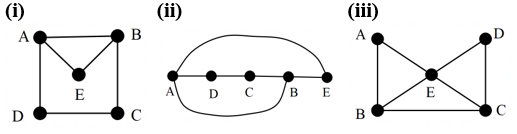

In the diagrams below which network graphs are isomorphic to each other?

A

\(\text{(i) and (ii)}\)

B

\(\text{(i) and (iii)}\)

C

\(\text{(ii) and (iii)}\)

D

\(\text{(i),(ii) and (iii)}\)

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 8 of 13

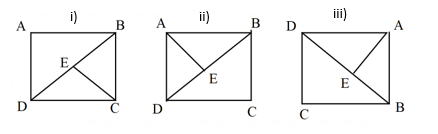

In the diagrams below which network graphs are isomorphic to each other?

A

\(\text{(i) and (ii)}\)

B

\(\text{(i) and (iii)}\)

C

\(\text{(ii) and (iii)}\)

D

\(\text{(i),(ii) and (iii)}\)

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 9 of 13

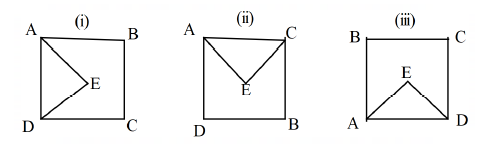

In the diagrams below which network graphs are isomorphic to each other?

A

\(\text{(i) and (ii)}\)

B

\(\text{(i) and (iii)}\)

C

\(\text{(ii) and (iii)}\)

D

\(\text{(i),(ii) and (iii)}\)

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 10 of 13

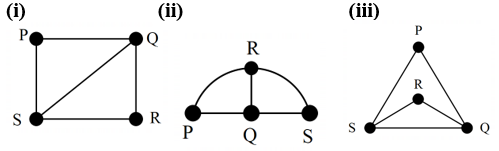

In the diagrams below which network graphs are isomorphic to each other?

Answer

You must be logged in to see the answer.

Worked Solution

You must be logged in to see the worked solutions.

You must have an active subscription to access course content
Previewing

Network Diagrams - Revision Quiz 1

Question 11 of 13

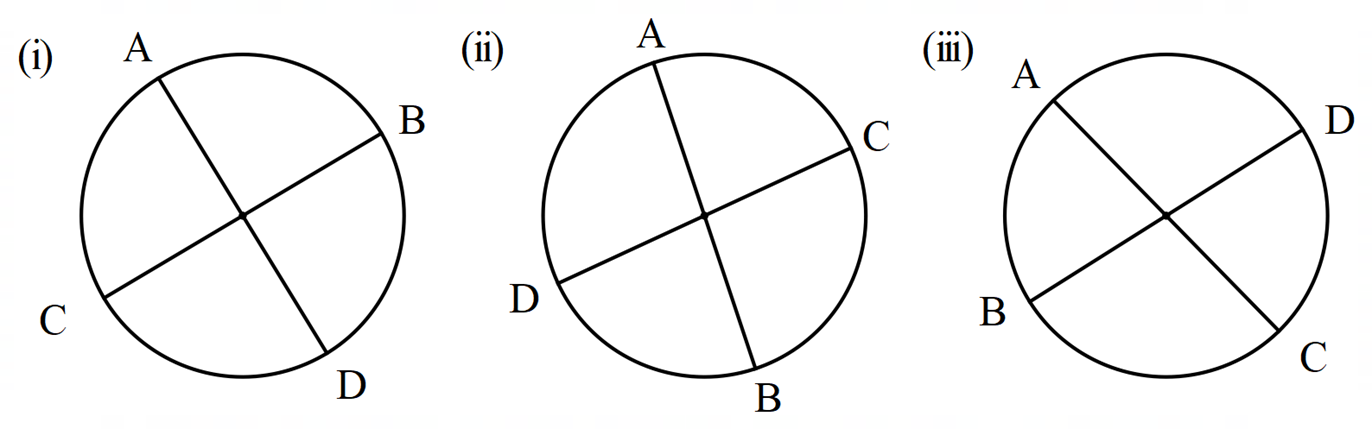

In the diagrams below which network graphs are isomorphic to each other?
